ISOLO VF-10 Violin/Fiddle Wireless System (With KNA pickup)
Deescription
Helps violinists to increase the volume, adjust the tone and add in effects upon their most familiar instruments, broadening all possibilities of playing in various venues. Ultra compact design enable players to play wirelessly and to control the sound quality precisely.
Manual
Overview
Bringing it into Full Play on A Familiar Basis
The evolution of technology has brought a lot of changes; music playing/listening is also included. In the face of bigger venues, larger audiences and the need for tones of different genres, violin playing also needs the assistance of audio equipment, so as to make the sound be heard clearly.
Sound Demo
Extraordinary in every aspect
In VF-10 system, there are two distinctive amplifications to a capture versatile sounds from acoustic violin. With the additional 8 built-in effects, performers are now able to handle performances perfectly, wirelessly.
Features

Globally Applicable Wireless Technique, Instinctive Setup & Simple Usage
Your attention should not be taken by any line, except for melodic lines. The VF-10 System operates in the globally available 2.4GHz band, free from regulation problems no matter where you are. With the one-click pairing, auto-connecting design, the system dispenses with complicated channel setup, and effectively avoids interference by automatic frequency hopping.
Dual Sound Capturing Mode & Eight Built-in Effects
No matter micing, which stresses on sounds with higher fidelity, or piezo pickup, which offers a bigger volume output, you can now have both and switch freely between them. There are also eight built-in effects that can bring your inspiration into a better play.


Adjustable Mount, Easy Installation Without Damaging the Varnish
The specialized lightweight mount ensures that the instrument’s resonance remains unaffected, while it also protects your beloved instrument from varnish damages.
Elegant and Portable for Any Performance
The system integrates all must have audio functions for soloists, plus the elegant storage design, there’s no more bags of stuff to carry before going on stage, and no more forgetting stuff after performances.

Features

Smart Wireless Transmitter
Built-in condenser mic operating in the globally available 2.4GHz band with one-click pairing function
Dual Source Input
Providing either microphone or KNA pickup amplification enriching your tone arsenal. diversifying the tones.
Adjustable Mount
Lightweight design, with cork pad, providing firm installation without affecting the resonance and varnish.

Eight Built-in Effects
Ranging from reverb, delay to octave, inspiring more possibilities.
High Fidelity Audio Chips
With audiophile circuit, producing full, delicate sounds
Integration of Necessary Audio Functions
Supporting 6.3mm input and 3.5mm external audio source. Balanced output is also available with a converter.

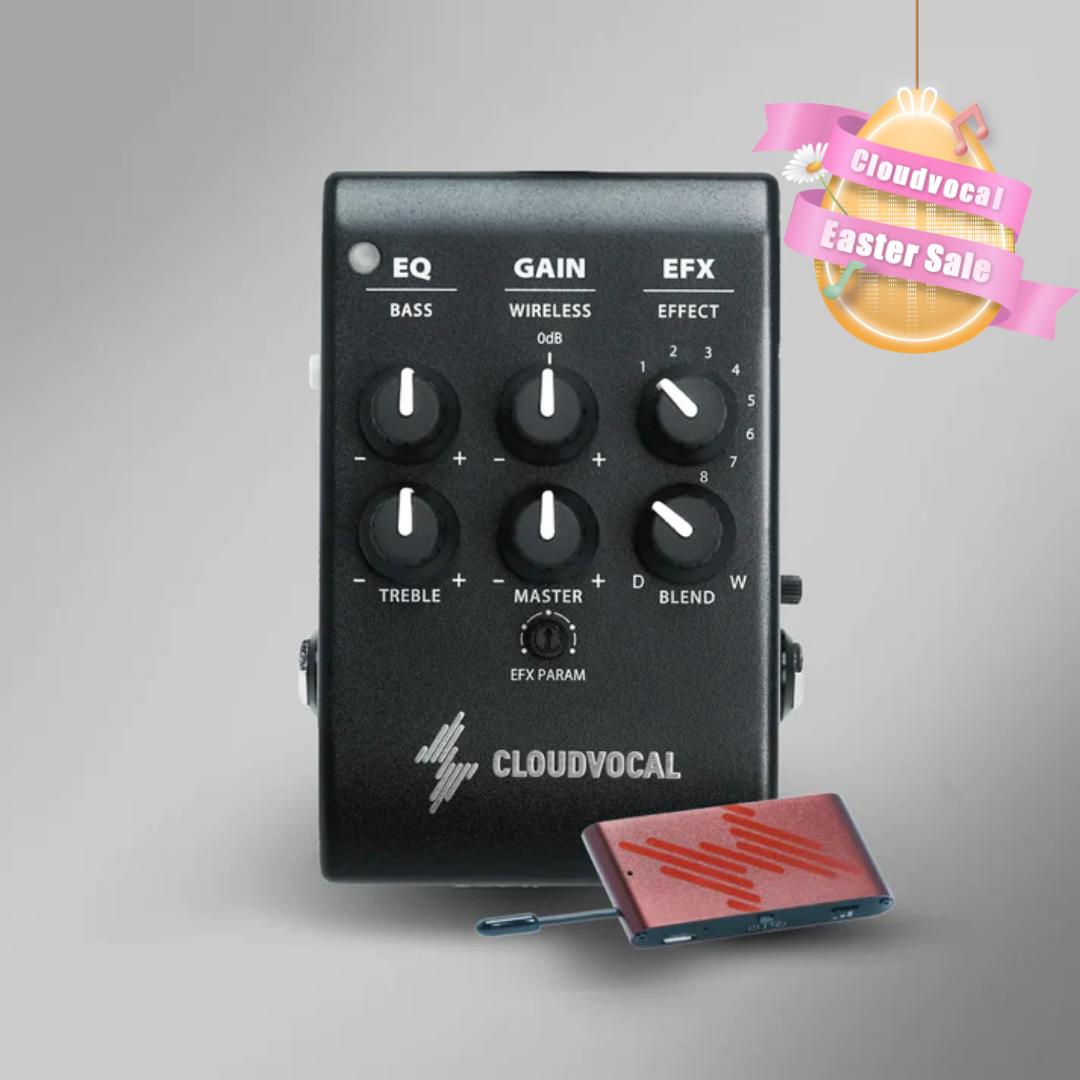

GAIN
WIRELESS
Wireless mic gain control +/- 6dB
MASTER
Master Volume control mute~0dB
EQ
BASS
Bass control of wireless mic signal +/- 6dB @500Hz (shelf type)
TREBLE
Treble control of wireless mic signal +/- 6dB @5000Hz (shelf type)
EFX
EFFECT
① Room reverb ② Hall reverb ③ Arena reverb ④ Delay ⑤ Delay+Reverb ⑥ Shimmer ⑦ Chorus ⑧ Flanger
BBLEND
Controls the balance of dry and wet signal
EFX PARM
Rotate to adjust effect detail

① RANGE BOOST
② DI / LINE OUT
- DI OUT : balanced signal via 6.3mm TRS to XLR cable
- LINE OUT: unbalanced signal via 6.3mm TS cable
③ LINE/MIC GAIN
Gain range: 0~40dB
④ LINE/MIC INPUT
Support MIC level to LINE level signal input via 6.3mm TS or TRS cable.
⑤ MUTE PEDAL CONNECTOR
⑧ AUX IN
① RANGE BOOST
② DI / LINE OUT
DI OUT : balanced signal via 6.3mm TRS to XLR cableLINE OUT: unbalanced signal via 6.3mm TS cable
⑤ MUTE PEDAL CONNECTOR
③ LINE/MIC GAIN
Gain range: 0~40dB
④ LINE/MIC INPUT
Support MIC level to LINE level signal input via 6.3mm TS or TRS cable.
⑤ MUTE PEDAL CONNECTOR
⑥ AUX IN
Specs
VF-10 Receiver
Dimensions
115mm(L)*75mm(W)*50mm(H)
Net Weight
310g
Transmit bandwidth
2.4GHz global ISM, smart automatic frequency hopping
Working distance
15 meters (50 feet)
*The distance may alter in different environments.
Power supply
7V-9V DC, 300mA
*5V/2A power banks are recommended for power alternative
Input
6.3mm TRS / TD x1 (for dynamic mic or other line instrument)
Output
Balanced 6.3mm TRS —> XLR
Unbalanced:6.3mm TRS —> 6.3mm TS
Effect types
① Room reverb ② Hall reverb ③ Arena reverb ④ Delay ⑤ Delay+Reverb ⑥ Shimmer ⑦ Chorus ⑧ Flanger
VF-10 mic transmitter
Dimensions
60mm(L)*25mm(W)*10mm(H)
Net Weight
26g (without adjustable clamp and VV-3 pickup)
Mic Type
Condenser mic
Transmit bandwidth
2.4GHz global ISM, smart automatic frequency hopping
Frequency Response
Mormal mode: 20Hz~20KHz, +1dB/-3dB
Range boost: 20Hz~16KHz, +1dB/-3dB
Polar pattern
Cadioid
Max SPL
140dB
THD +N
Less than 0.05% (1KHz@ -10dB FS)
Battery Life
5~7 hours
*Retain 80% of maximum capacity after 300 recharging cycles
Sensitivity
0dB/+3.5dB/+6dB

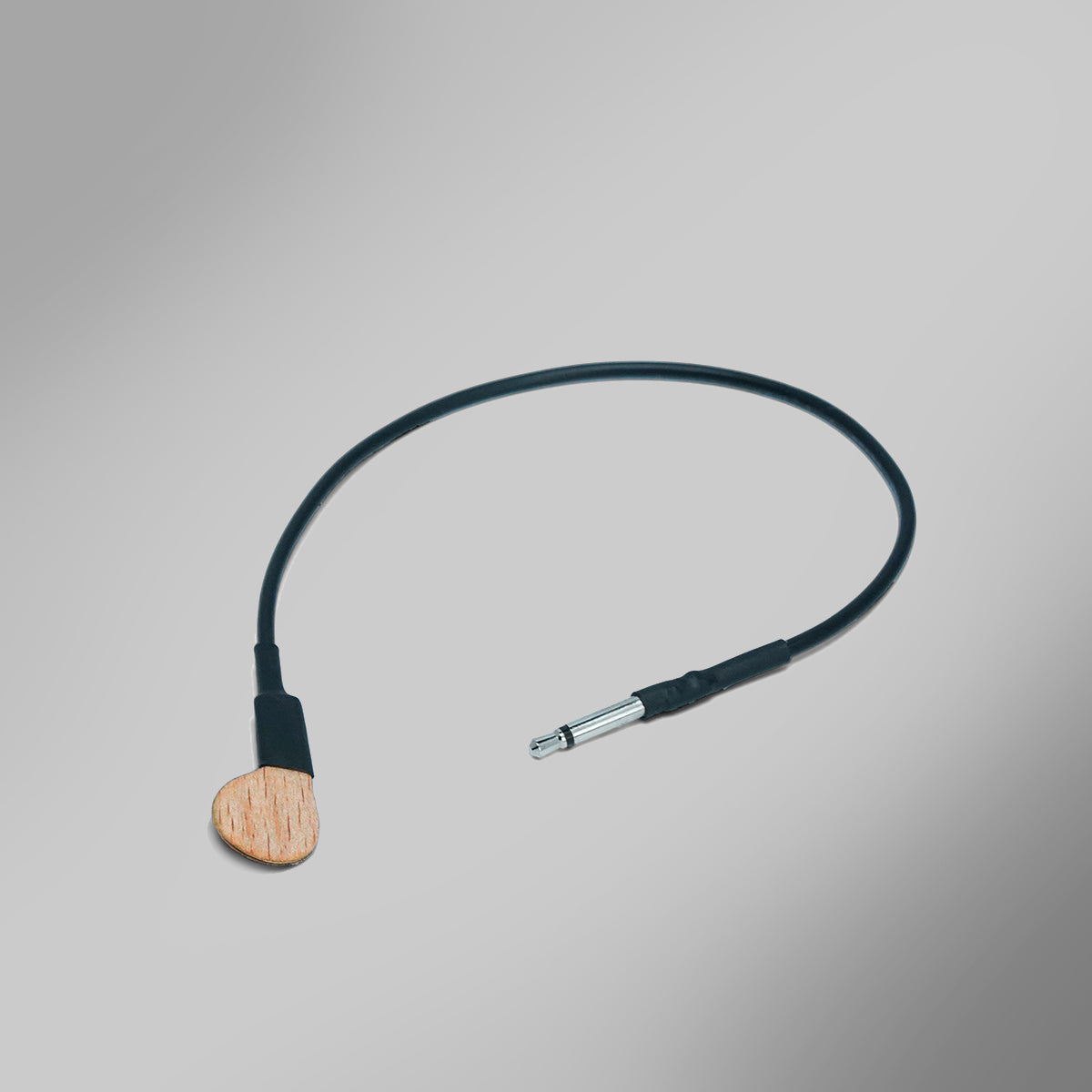

KNA VV-3 piezo pickup
Material
outer: wood / Inner: piezo
Pick up type
Piezo
Thickness
2.0mm
*may vary slightly in size
Impedance
1500 Ω
Contents
Main Box
VF-10 mic transmitter
VF-10 receiver
KNA VV-3 piezo pickup
Adjustable clamp
Sponge hook*3
Velcro adhesive*1
User manual
Quick start guide
Micro USB charging cable for mic transmitter
Accessory package
Antenna 2.0
USB
DC power adaptor
Power supply cable for receiver
6.3mm TS cable
6.3mm male to
3.5mm female audio adapter
6.3mm TRS to XLR adapter

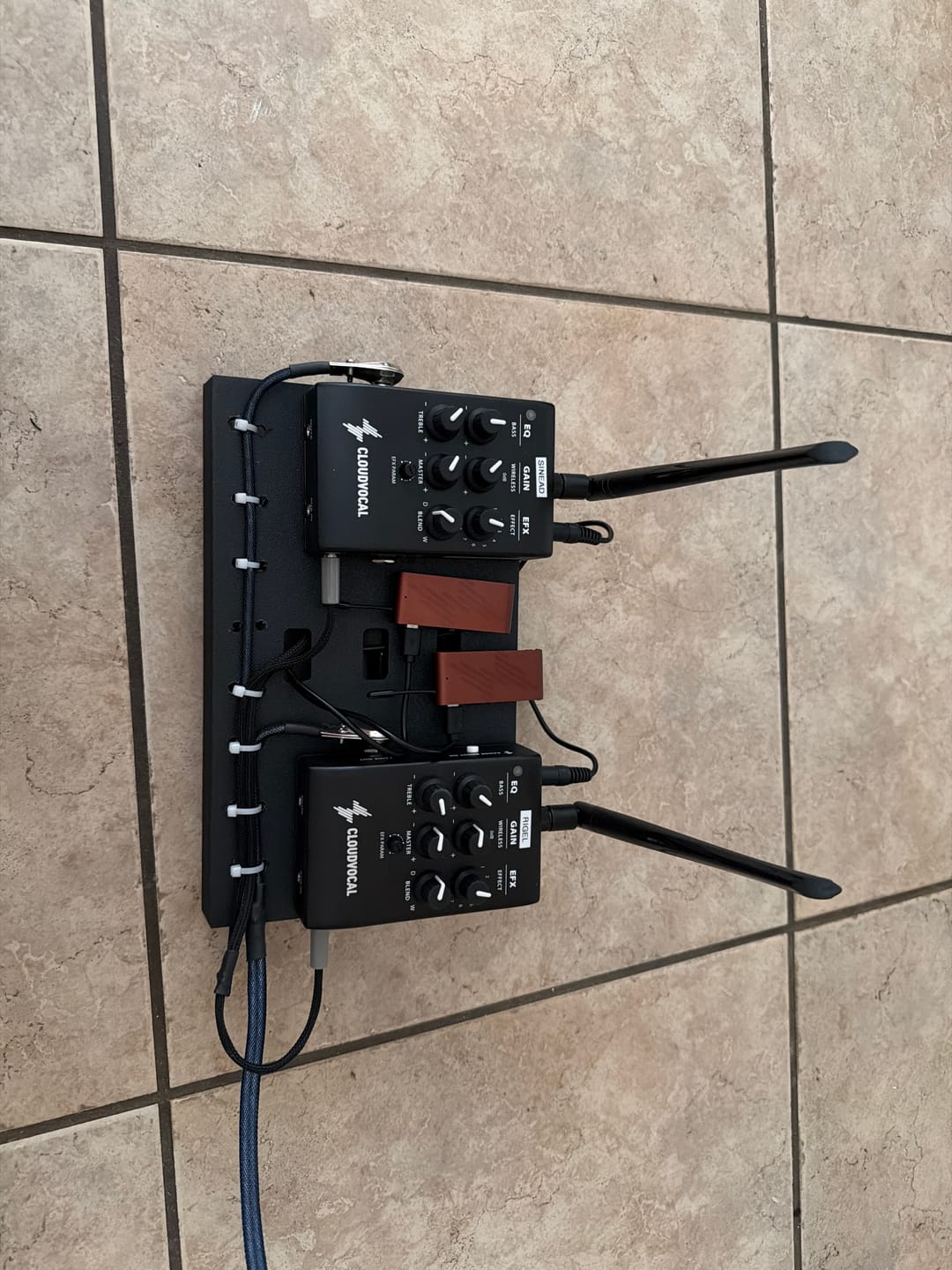

Customer Reviews
