ISOLO GT-10 Guitar Wireless System
Description
There’s nothing better than taking out a great guitar and playing some music
with friends. Whether or not you’re a professional musician, there are chances
to share your music with others all the time. Want to take your beloved guitar
on stage, but don’t want to bore holes and install a pick-up? No problem! No
drilling is required with the GT-10—the best choice for any guitar owner.
Manual
Overview
Go loud, protect your guitar
There’s nothing better than taking out a great guitar and playing some music with friends. Whether or not you’re a professional musician, there are chances to share your music with others all the time. Want to take your beloved guitar on stage, but don’t want to bore holes and install a pick-up? No problem! No drilling is required with the GT-10—the best choice for any guitar owner.
Sound Demo
The smart choice for guitar amplification
From the capsule of the microphone to the amplification controls, the GT-10 has been expertly designed by a team of engineers and musicians to faithfully reproduce a guitar’s original sound with ease.
With the GT-10, you will never again have to compromise between convenience and sound quality.
Features
Easy installation, no tools or drilling required

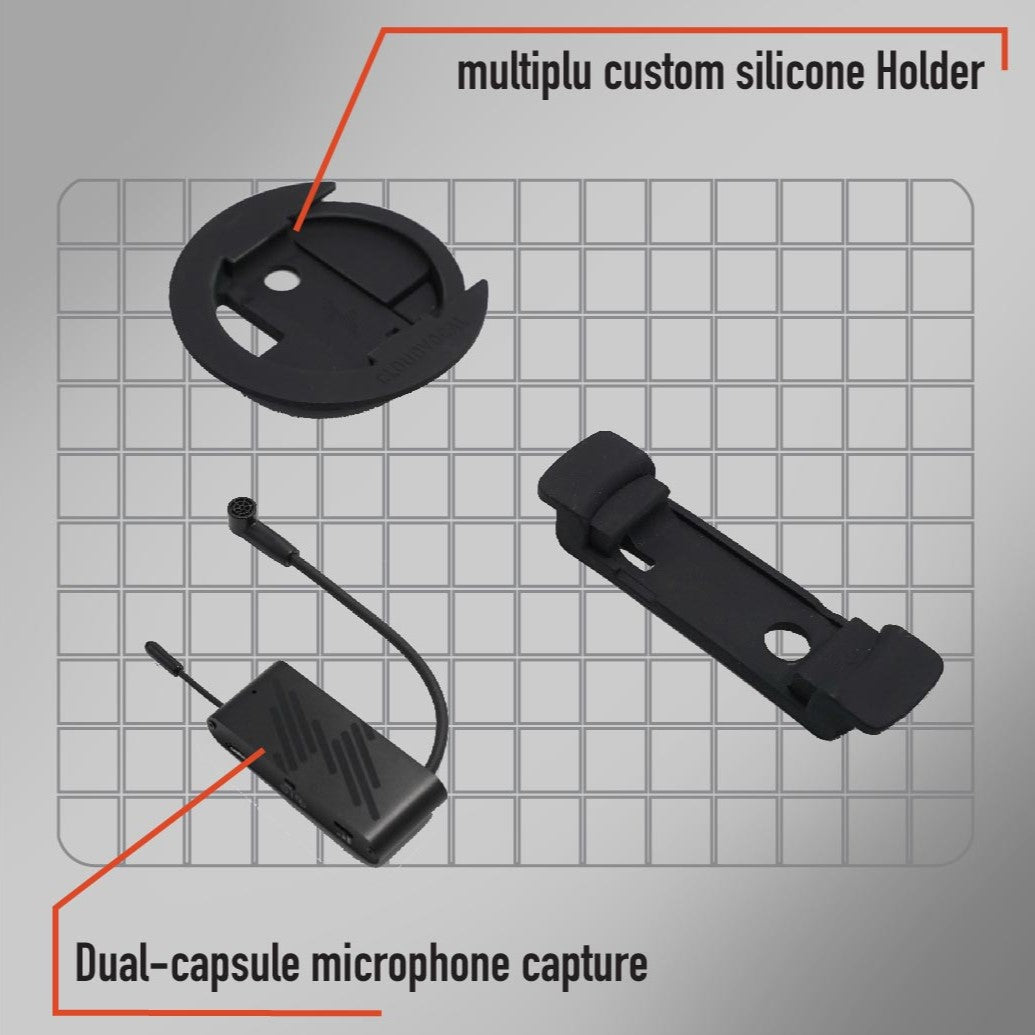

An extremely light-weight microphone rests on your guitar via a custom silicone stand. Whether a nylon- or steel-string guitar, a solo or group performance, quick setup with the GT-10 is the pinnacle of convenience.
Capture all the details with a performance microphone and flexible arm
Not only can the dual-capsule microphone capture fingerstyle, flatpicking, and slapping, but its position can also be adjusted according to personal preference and the sound profile of the guitar body.
A quality sound circuit: the crux of any audiophile setup
You know it when you hear it: an audiophile-grade sound circuit is a must-have for any serious amp system. I/O, EQ, and volume controls are included for maximum versatility.
Intelligent and wireless, with worldwide compatibility
Smart frequency-hopping combined with low-latency wireless transmission let you make the most of your performances, all around the world. Lose the wires; free yourself and your sound.
Features
Smart wireless transmission
Global standard 2.4GHz transmissionwith one-click pairing.
Easy installation, quick adjustment

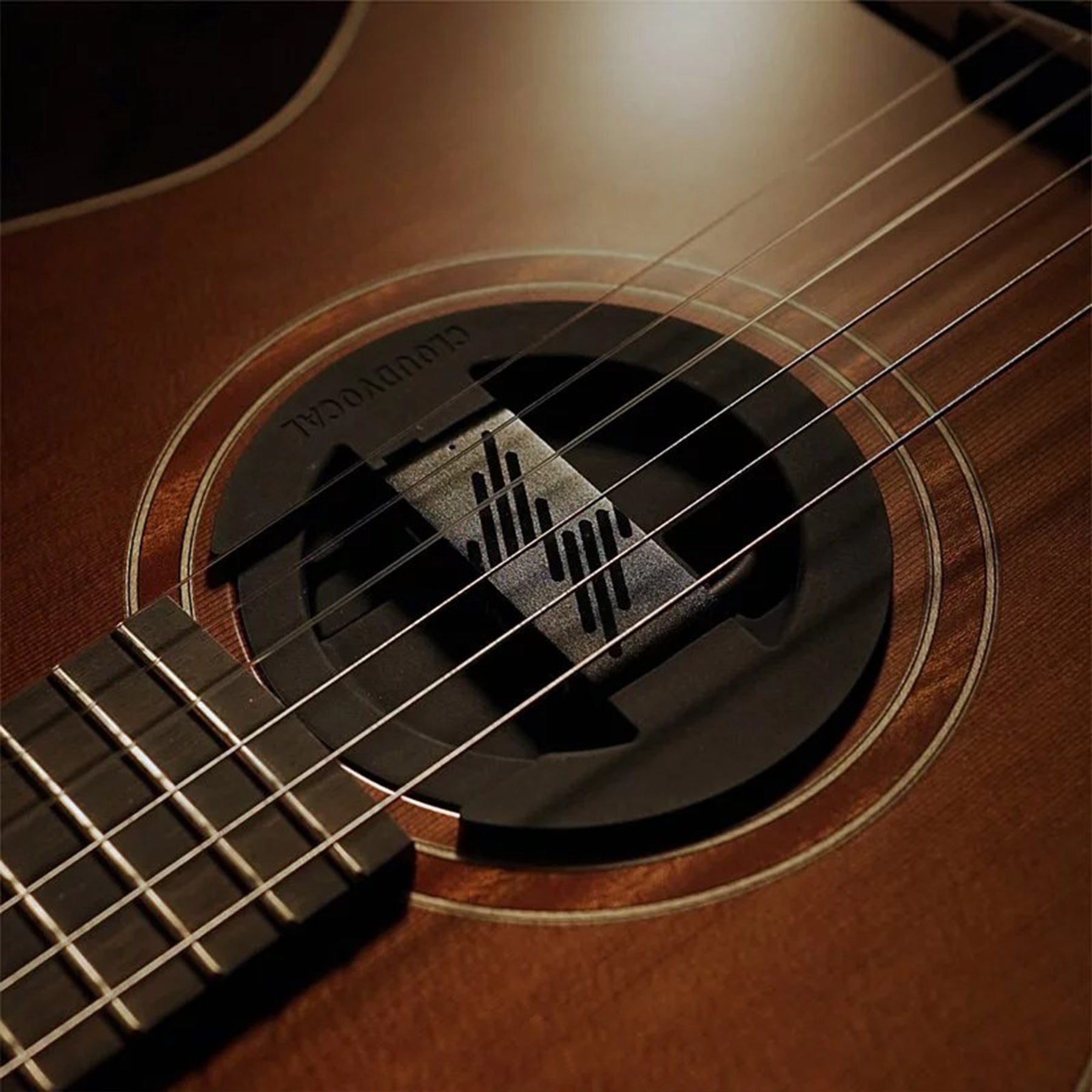

Innovative silicone stand connects the microphone and the guitar. No drilling, no damage—a new, better option for amplification
Dual-head microphone, detailed audio capture
Strumming, slapping, and fingerstyle can all be faithfully reproduced
Eight useful audio effects
Reverb, delay, chorus, and more all are preloaded with the GT-10
Hi-fi amp circuit
Audiophile-grade material for a rich, detailed sound
Full connectivity
Supports two types of wired input + balanced audio output

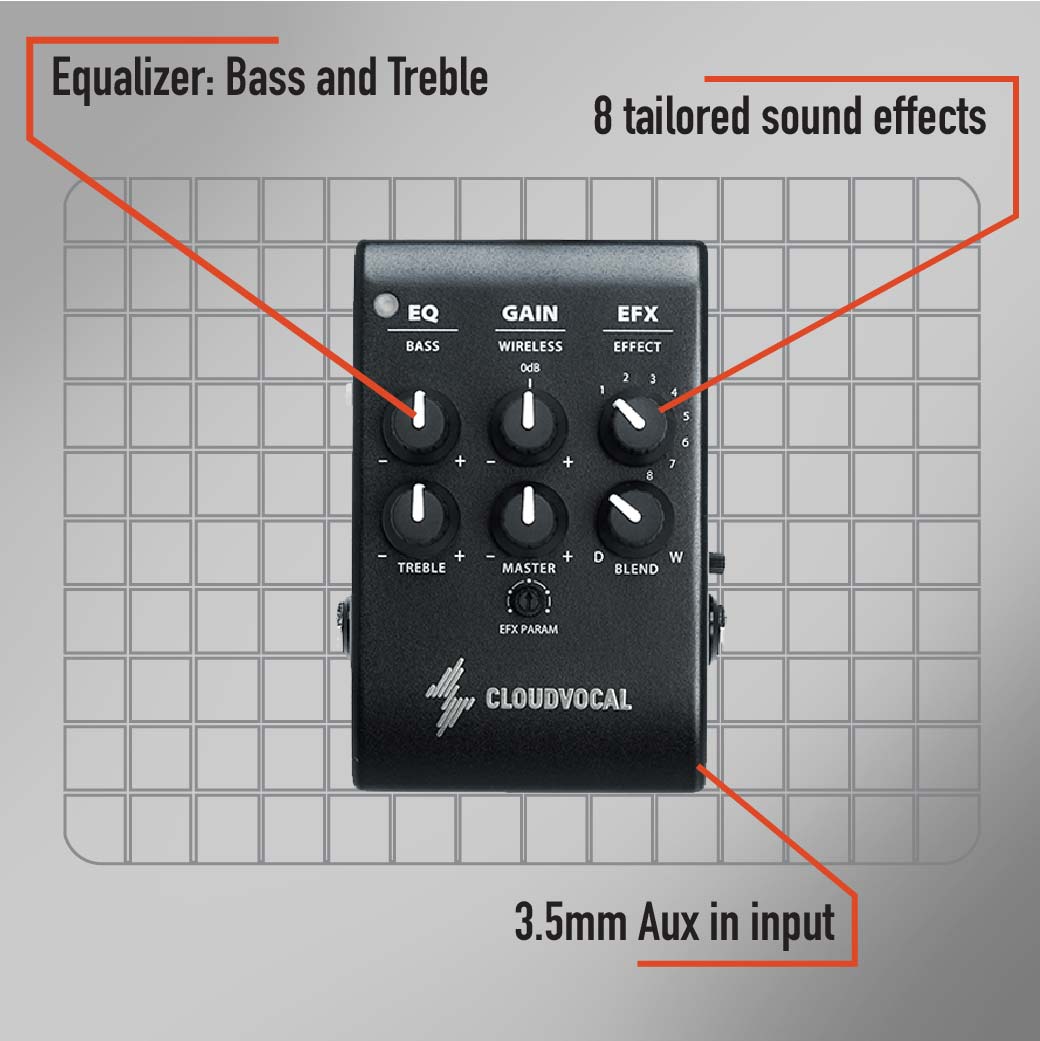

GAIN
WIRELESS
Wireless mic gain control +/- 6dB
MASTER
Master volume control mute~0dB
EQ
BASS
Bass control of wireless mic signal +/- 6dB @200Hz (shelf type)
TREBLE
Treble control of wireless mic signal +/- 6dB @2000Hz (shelf type)
EFX
EFFECT
① Room reverb ② Hall reverb ③ Arena reverb ④ Delay ⑤ Delay+Reverb ⑥ Shimmer ⑦ Chorus ⑧ Flanger
BBLEND
Controls the balance of dry and wet signal
EFX PARM
Rotate to adjust effect detail
① RANGE BOOST
② DI / LINE OUT
- DI OUT : balanced signal via 6.3mm TRS to XLR cable
- LINE OUT: unbalanced signal via 6.3mm TS cable
③ LINE/MIC GAIN
Gain range: 0~40dB
④ LINE/MIC INPUT
Support MIC level to LINE level signal input via 6.3mm TS or TRS cable.
⑤ MUTE PEDAL CONNECTOR
⑥ AUX IN
① RANGE BOOST
② DI / LINE OUT
DI OUT : balanced signal via 6.3mm TRS to XLR cableLINE OUT: unbalanced signal via 6.3mm TS cable
⑤ MUTE PEDAL CONNECTOR
③ LINE/MIC GAIN
Gain range: 0~40dB
④ LINE/MIC INPUT
Support MIC level to LINE level signal input via 6.3mm TS or TRS cable.
⑤ MUTE PEDAL CONNECTOR
⑥ AUX IN
Specs

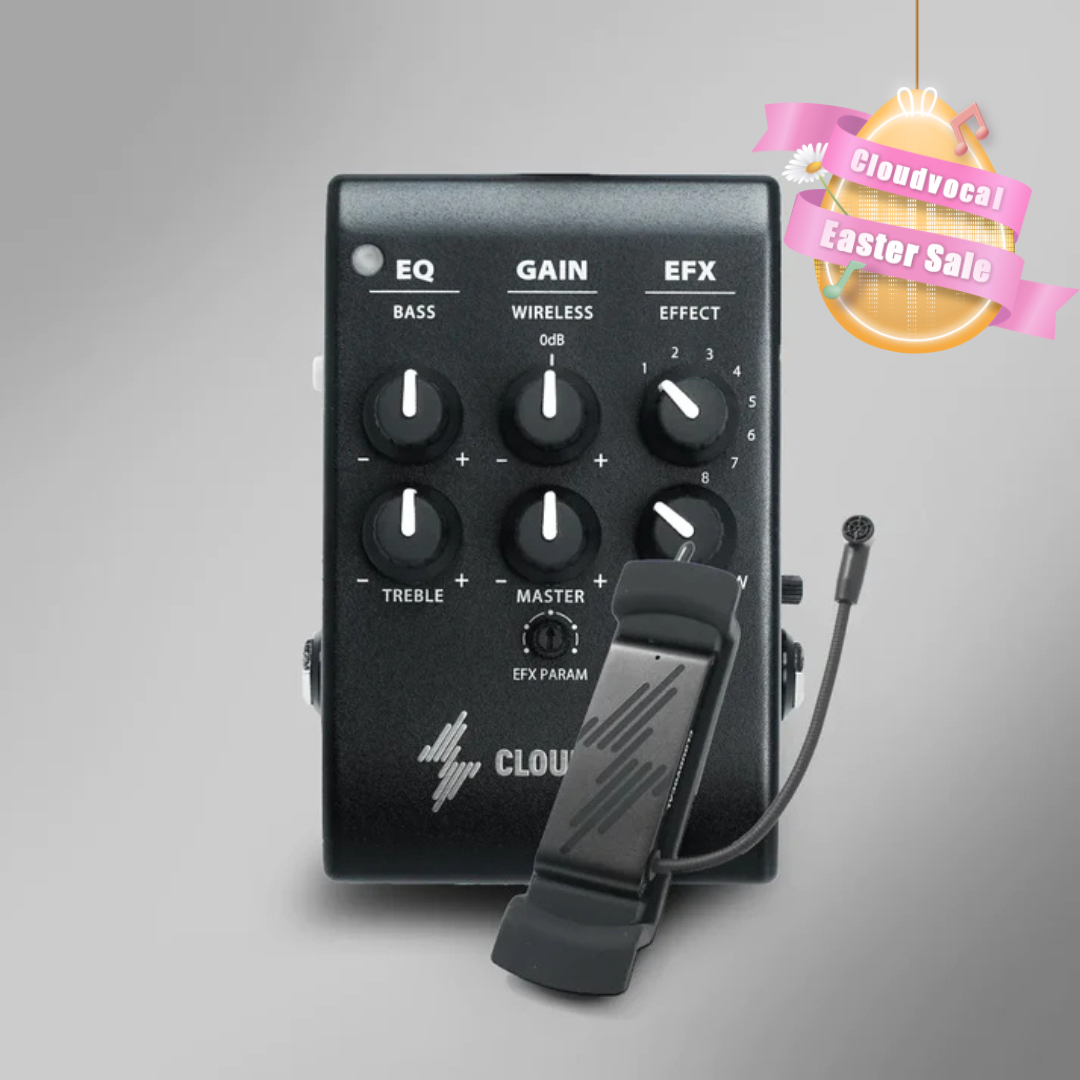

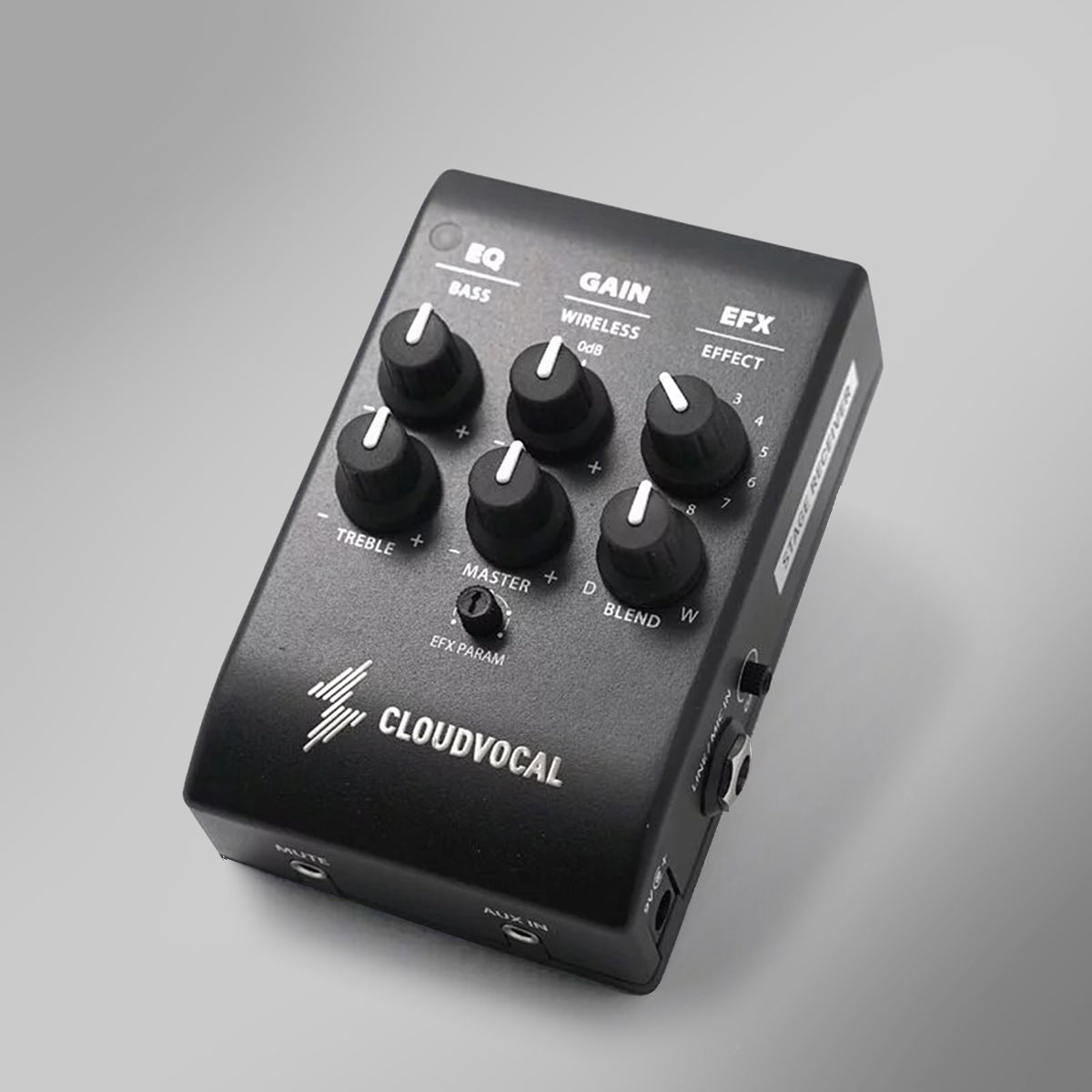

GT-10 Receiver
Dimensions
115mm(L)*75mm(W)*50mm(H)
Net Weight
310g
Transmit bandwidth
2.4GHz global ISM, smart automatic frequency hopping
Working distance
Normal: 15 meters
Range boost on: 15~30 meters
*The distance may alter in different environments.
Power supply
7V-9V DC, 300mA
*5V/2A power banks are recommended for power alternative
Input
6.3mm TRS / TS x1 (for dynamic mic or other line instrument)
3.5 mm TRS x 1 (external audio)
Output
Balanced 6.3mm TRS —> XLR
Unbalanced：6.3mm TRS —> 6.3mm TS
Effect types
①Room reverb ②Hall reverb ③Arena reverb ④Delay ⑤Delay+Reverb ⑥Shimmer ⑦Chorus ⑧Flanger

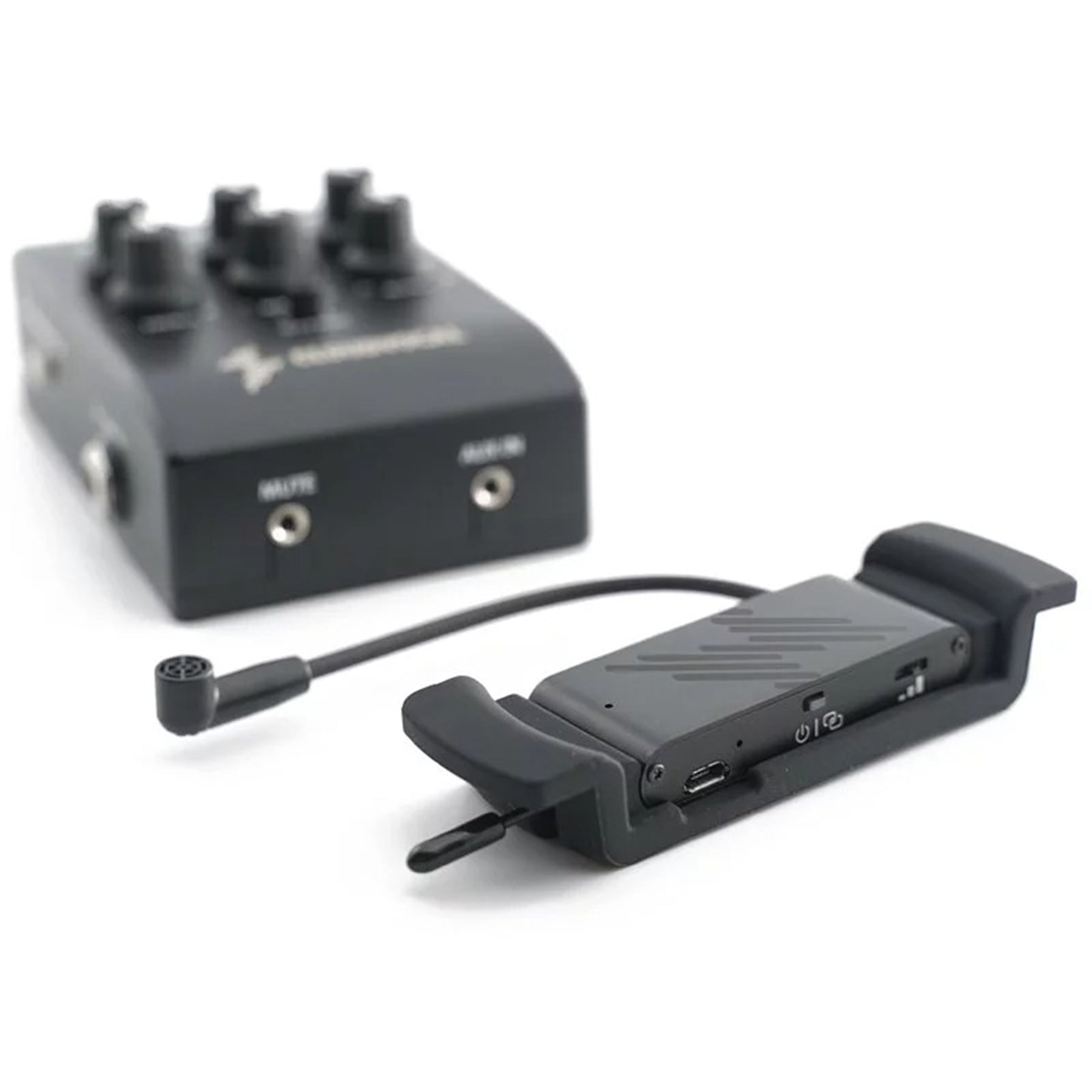

GT-10 transmitter
Dimensions
60mm(L)*25mm(W)*10mm(H)
Net Weight
26g
Mic Type
Condenser mic
Transmit bandwidth
2.4GHz global ISM, smart automatic frequency hopping
Frequency response
Normal mode: 20Hz~20KHz,+1dB/-3dB
Range boost: 20Hz~16KHz,+1dB/-3dB
Polar pattern
Cadioid
Max SPL
140dB
THD +N
Less than 0.05% (1KHz@-10dB FS)
Battery Life
5~7 hours
*Retain 80% of maximum capacity after 300 recharging cycles
Mounting Accessories
Soundhole Cover
Dimensions
Diameter 100mm/Diameter 86mm
Net weight
69g / 46g
Function
Prevent feedback in louder occasions

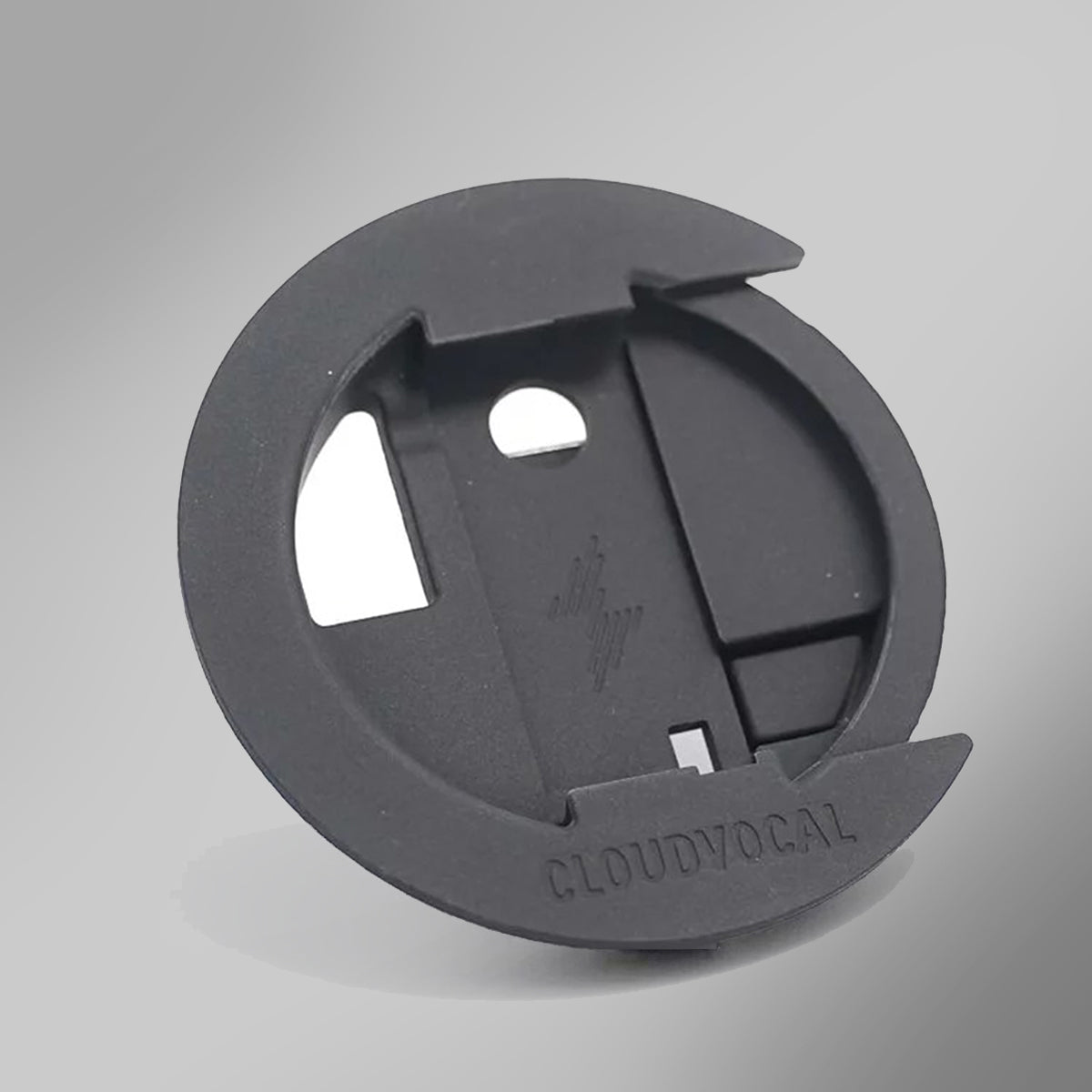

Soundhole holder
Dimensions
Diameter 100mm / Diameter 86mm
Net Weight
29g / 21g
Contents
Main box
Mic transmitter
GT-10 receiver
Soundhole holders and covers for both acoustic & classical guitars
User manual
Charging cable for mic transmitter
Accessory package
Antenna 2.0
USB DC power adaptor
Power supply cable for receiver
6.3mm TRS to XLR cable
6.3mm TS cable
6.3mm 1/4” male to 3.5mm female audio adaptor
Customer Reviews
Related Blog
Your tone is you
GuitarPlayer Review
Instruction and operation of ISOLO System
Your tone is you
Instruction and operation of ISOLO System
Smart wireless transmission
Global standard 2.4GHz transmissionwith one-click pairing.
13 cm extended gooseneck+ Cardioid mic capsule
Extend to the sweetest mic position, prevents unwanted sound bleed in from other directions.
Advanced spring clip
Provides a swift and stablemounting alternative.
8 tailored sound effects
Includes 3 types of reverb, 2 types of delay and 3 types of harmonizer algorithm.
Compact I/O and audiophileop amp
Support up to 3 different audio sources at a time. Audiophile op amp assures all signals to sound great!
Multiple power options
You can use a standard 9V DC adapter as well as power banks with the included power cable.
