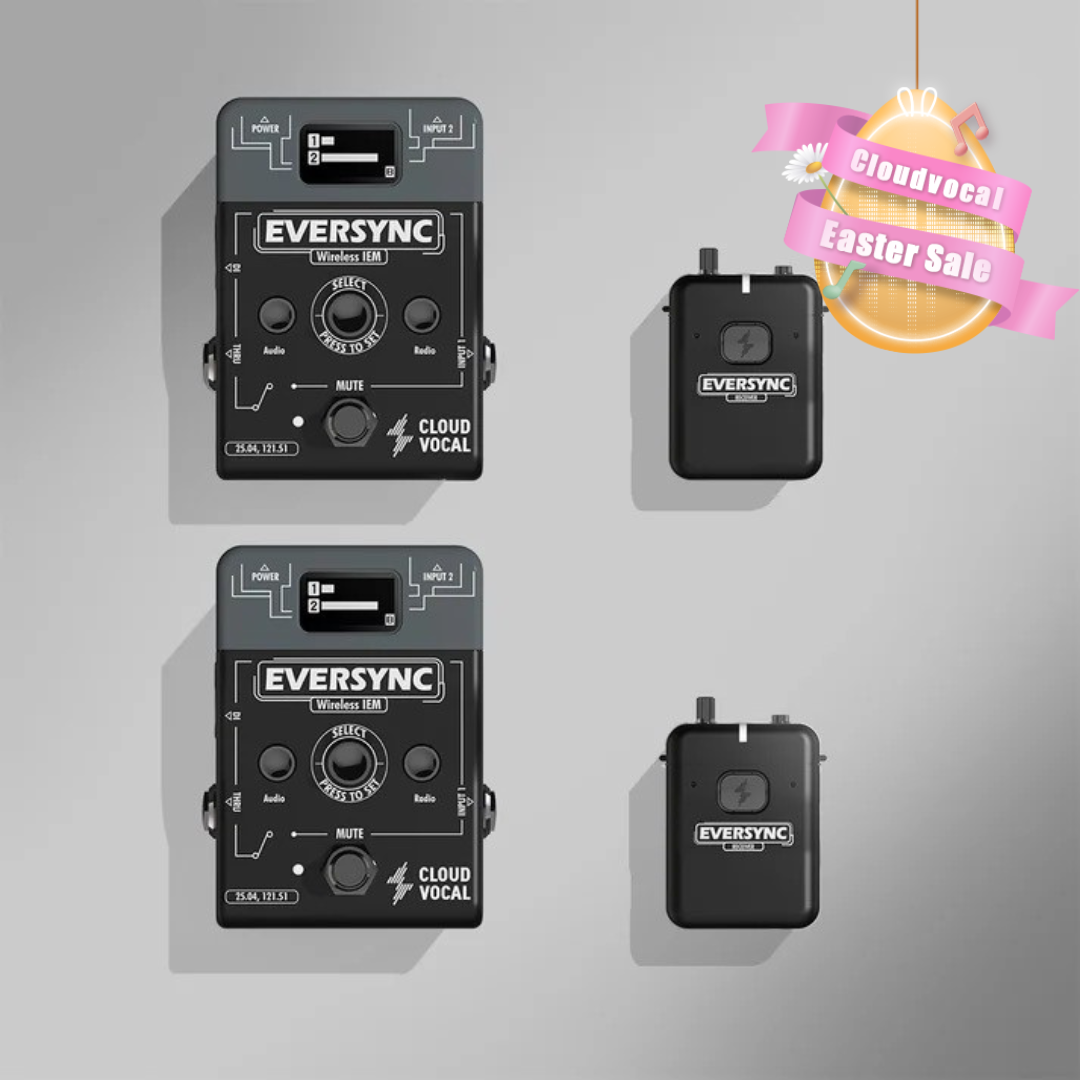

EverSync Wireless IEM - Band Version
The contents include two sets of EverSync Wireless IEM.
Benefits of purchasing directly from CLOUDVOCAL:
- Enjoy a 14-day risk-free trial.
- Receive a 2-year warranty from the date of original purchase.
- Experience fast delivery with DHL worldwide service.
Feature
- 5.8GHz wireless with 5ms latency and mono 24bit/48Khz resolution
- Compact stompbox design, compatible with pedalboards
- Transmitter built-in 9V isolated power supply, 2 in 2 out and DI output
- Receiver has 8-hour battery life, 100mW max headphone output, AUX in and USB audio recording.
Contents
- ES-10T transmitter *2
- ES-10R receiver *2
- Interchangeable Power Adapters*2(Adapters for US,EU and UK)
- USB-C charging cable*2
- Manual Download*2
- Quick Start Guide*2
Notice
- Import duties vary by country. Any additional customs duties must be borne by the customer. Thank you for your understanding.
- Accept major credit cards through PayPal.
Overview
Sync Up. Groove on
EverSync is the first wireless IEM in Cloudvocal's product line. The system utilizes the 5.8GHz wireless band and therefore can be used alongside different 2.4GHz devices without interference, assisting performers in achieving precise control over pitch, groove, and dynamics during performances.
The ES-10T transmitter and ES-10R receiver are designed to adapt seamlessly to various stage setups while ensuring ISOLO users enjoy the convenience of a fully wireless experience in the most compact way.
Artist Video
Features
5.8GHz low latency high-quality monitoring
EverSync is our first 5.8GHz wireless IEM product. The broadcasting setting allows multiple receivers to simultaneously have 24bit/48KHz high-quality audio in less than 5ms latency. Wireless range up to 100 ft in line of sight without interference.
With a four-selectable channel design, it supports up to four separate monitoring mixes for various scenarios.
Ultra performance without complexity
With the help of the OLED screen, users are able to navigate through all the features effortlessly. From adjusting input gain, wireless pairing, to channel switching, all the controls will have corresponding icons and indicators.
One device, limitless possibilities
Thanks to the isolated power design, the transmitter can be either powered by a USB-C cable or a standard DC-9V effect pedal adapter without the annoying noise. Meanwhile, the DI and thru output enable performers to have limitless options for using EverSync.
*EverSync does NOT have preamp functions!
More than a body-pack receiver
100mW headphone output plus a selectable volume limiter, powerful but not harmful. Extra 1/8" aux-in input allows another audio source while pairing with the transmitter. Built-in rechargeable battery, providing 8 hours of battery life. The USB-C has a charging function and is also a USB audio port for streaming or content creation.
Features
5.8GHz broadcasting wireless connection
Avoids interference from 2.4GHz wireless products. A perfect match with the ISOLO system for performers who expect to have a complete wireless setup.
8 hours of extended operation time
Enjoy up to 8 hours of wireless monitoring by the high-capacity rechargeable battery. A visible battery status indicator will show the battery life during using or recharging.
100mW powerful output
The ES-10R receiver has enough power to get most headphones working. While the built-in volume limiter can be turned on in case to prevent hearing loss from prolonged use.
4 selectable wireless channels
There are a total of 4 wireless channels that can be switched manually on the transmitter. Users are able to create 4 different mixes with 4 transmitters simultaneously.
2 in 2 out, flexible signal connection
The ES-10T transmitter can connect to the mixer's monitor output like most IEMs, while the DI output and mute switch allow the ES-10T placed at the end of your signal chain.
Isolated power design
Either power it up via a DC-9V adapter or a USB-C there will not be any noise problems.
*No batteries inside the transmitter.
① POWER BUTTON
② BATTERY INDICATOR
③ USB-C CHARGING/DATA PORT
④ AUX-IN INPUT--1/8" TRS
⑤ HEADPHONE CONNECTOR
⑥ PAIRING BUTTON
⑦ HEADPHONE VOLUME
⑧ STATUS INDICATOR
⑨ VOLUME LIMITER
① OLED SCREEN
② RADIO FUNCTION KEY
③ MAIN FUNCTION KEY
④ AUDIO FUNCTION KEY
⑤ MUTE SWITCH
⑥ MUTE/PAIRING INDICATOR
⑦ INPUT 1--1/4" TS
⑧ INPUT 2--1/4" TS
⑨ INPUT 2--1/8" TRS
⑩ USB-C POWER SOCKET
⑪ DC POWER SOCKET
⑫ DI OUTPUT--XLR
⑬ THRU OUTPUT--1/4" TS
① RANGE BOOST
② DI / LINE OUT
DI OUT : balanced signal via 6.3mm TRS to XLR cableLINE OUT: unbalanced signal via 6.3mm TS cable
⑤ MUTE PEDAL CONNECTOR
③ LINE/MIC GAIN
Gain range: 0~40dB
④ LINE/MIC INPUT
Support MIC level to LINE level signal input via 6.3mm TS or TRS cable.
⑤ MUTE PEDAL CONNECTOR
⑥ AUX IN
Specs
System specs
Transmit Bandwidth
5.8GHz broadcasting
Sampling Rate
24bit/48KHz
Latency
<5ms
Frequency Response
20Hz-20KHz
Total Channels
4 channels
Operating Range
30 meters (or 100ft) in an Open-range environment without interference.
ES-10T transmitter
Dimensions
107mm(L)*76mm(W)
*46mm(H)
Net Weight
238g ± 10g
Power Supply
USB-C / DC9V 200mA
Inputs
Ch1
6.3mm TS*1
Ch2
6.3mm TS*1
3.5mm TRS*1
Outputs
balanced XLR*1
unbalanced TS*1
ES-10R receiver
Dimensions
70mm(L)*50mm(W)
*23mm(H)
Net Weight
65g± 3g
Inputs
3.5mm TRS*1
Output
3.5mm TRS*1
100mW (max)
THD
0.29%
@1KHz, max output
Battery Type
Rechargeable lithium battery
Battery Life
8 hours
