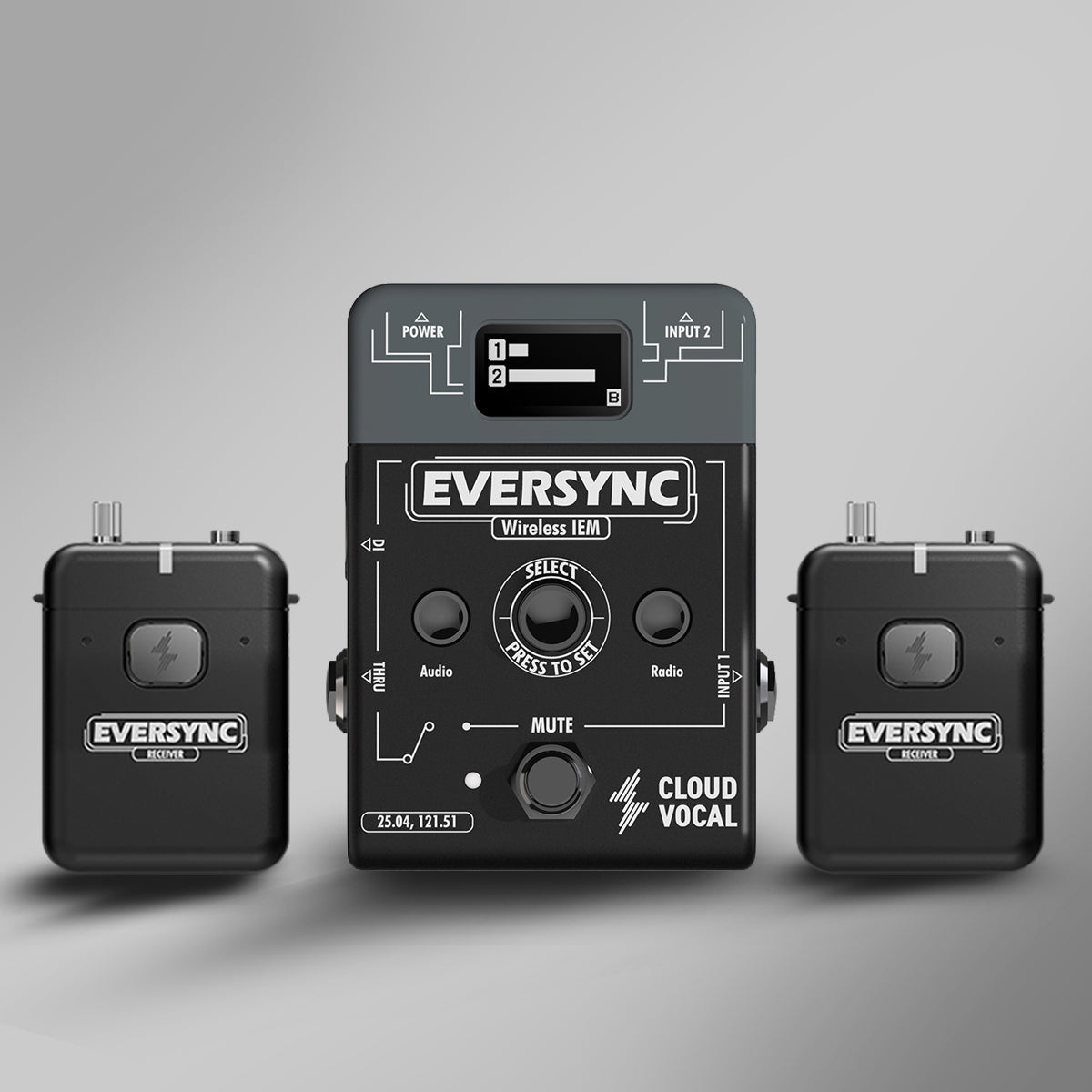

EverSync Wireless IEM (2x Receivers)

5.8GHz low latency high-quality monitoring

EverSync is our first 5.8GHz wireless IEM product. The broadcasting setting allows multiple receivers to simultaneously have 24bit/48KHz high-quality audio in less than 5ms latency. Wireless range up to 100 ft in line of sight without interference.
With a four-selectable channel design, it supports up to four separate monitoring mixes for various scenarios.

Ultra performance without complexity

With the help of the OLED screen, users are able to navigate through all the features effortlessly. From adjusting input gain, wireless pairing, to channel switching, all the controls will have corresponding icons and indicators.

One device, limitless possibilities

Thanks to the isolated power design, the transmitter can be either powered by a USB-C cable or a standard DC-9V effect pedal adapter without the annoying noise. Meanwhile, the DI and thru output enable performers to have limitless options for using EverSync.

More than a body-pack receiver

100mW headphone output plus a selectable volume limiter, powerful but not harmful. Extra 1/8" aux-in input allows another audio source while pairing with the transmitter. Built-in rechargeable battery, providing 8 hours of battery life. The USB-C has a charging function and is also a USB audio port for streaming or content creation.

5.8GHz broadcasting wireless connection

Avoids interference from 2.4GHz wireless products. A perfect match with the ISOLO system for performers who expect to have a complete wireless setup.

8 hours of extended operation time

Enjoy up to 8 hours of wireless monitoring by the high-capacity rechargeable battery. A visible battery status indicator will show the battery life during using or recharging.

100mW powerful output

The ES-10R receiver has enough power to get most headphones working. While the built-in volume limiter can be turned on in case to prevent hearing loss from prolonged use.

4 selectable wireless channels

There are a total of 4 wireless channels that can be switched manually on the transmitter. Users are able to create 4 different mixes with 4 transmitters simultaneously.

2 in 2 out, flexible signal connection

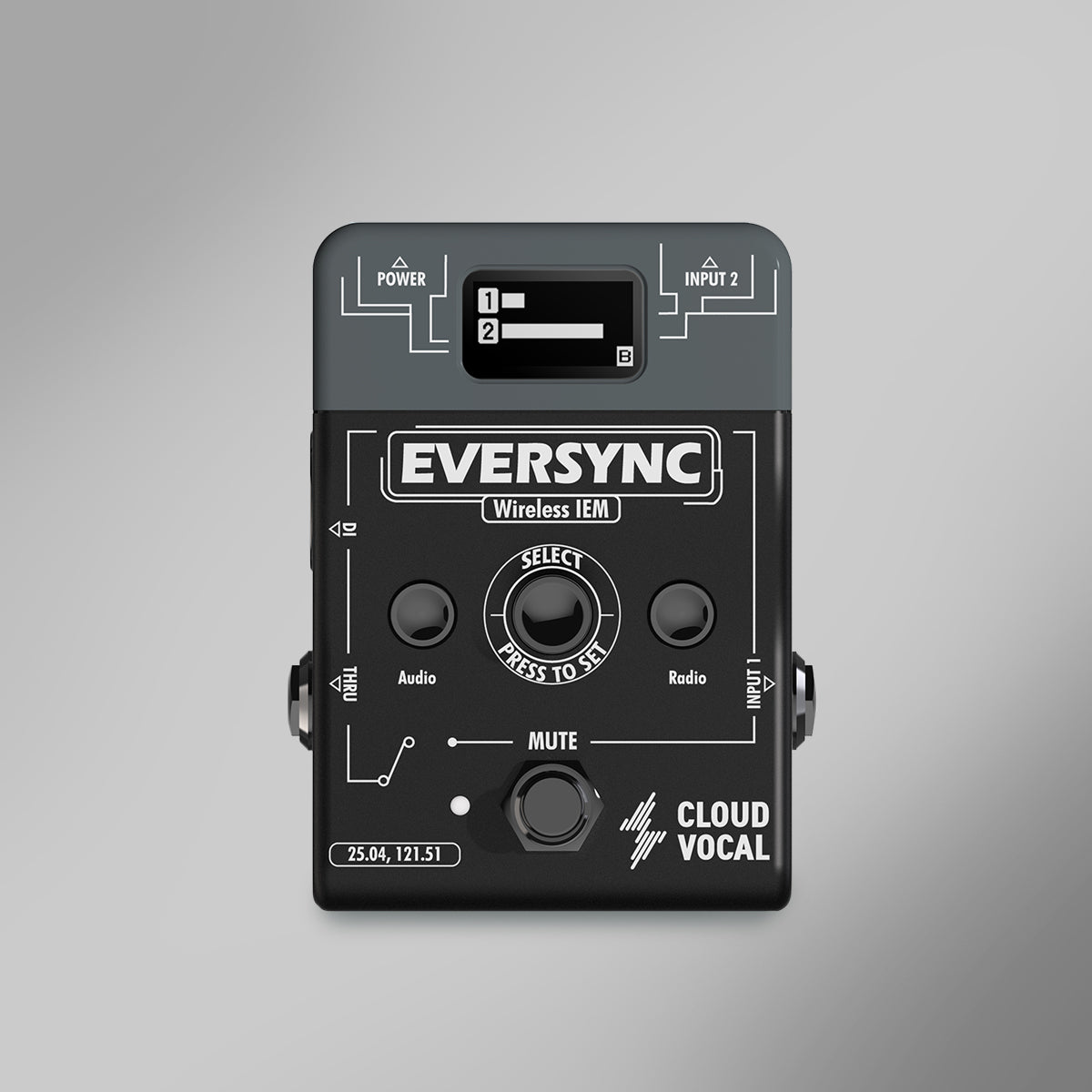

The ES-10T transmitter can connect to the mixer's monitor output like most IEMs, while the DI output and mute switch allow the ES-10T placed at the end of your signal chain.

Isolated power design

Either power it up via a DC-9V adapter or a USB-C there will not be any noise problems.
*No batteries inside the transmitter.

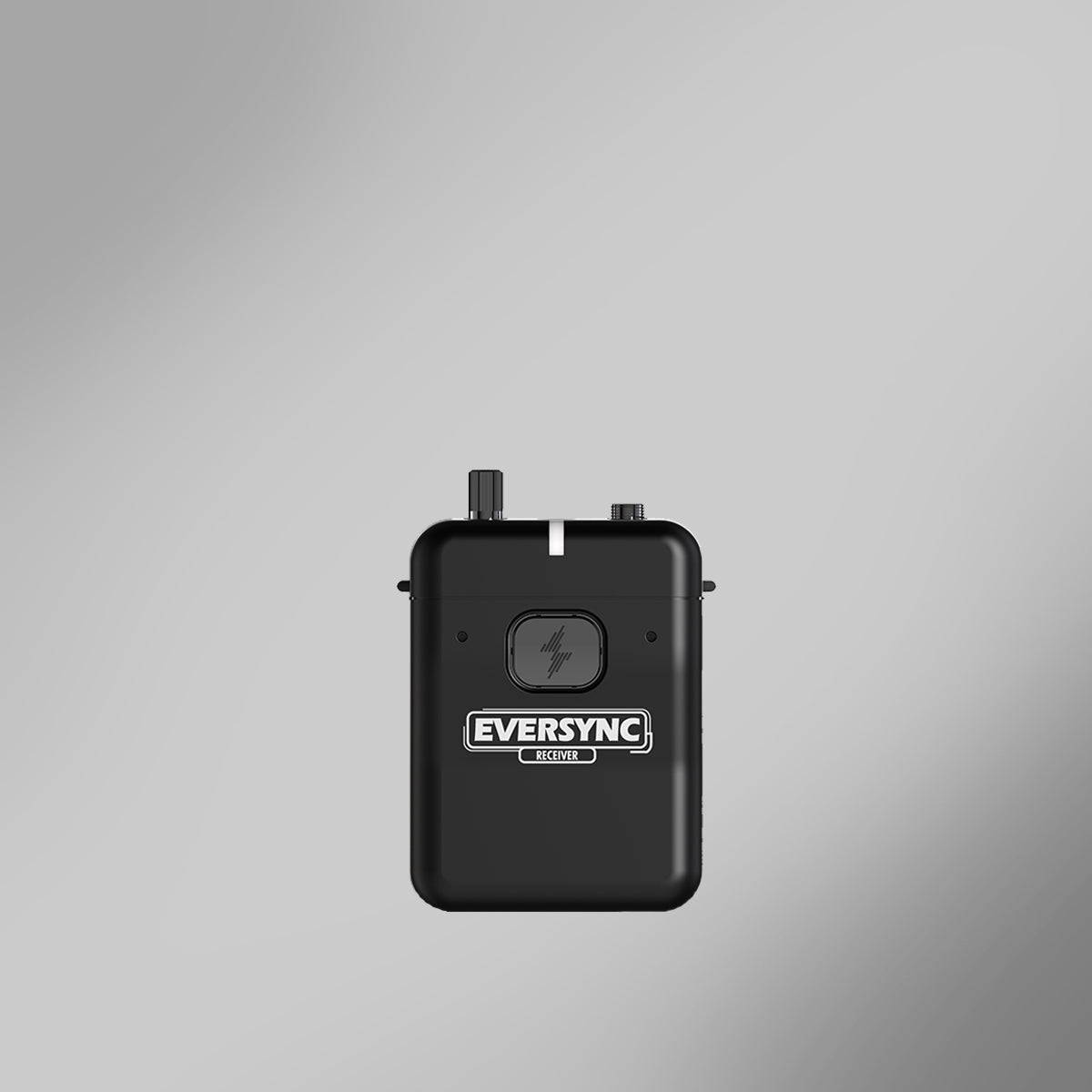

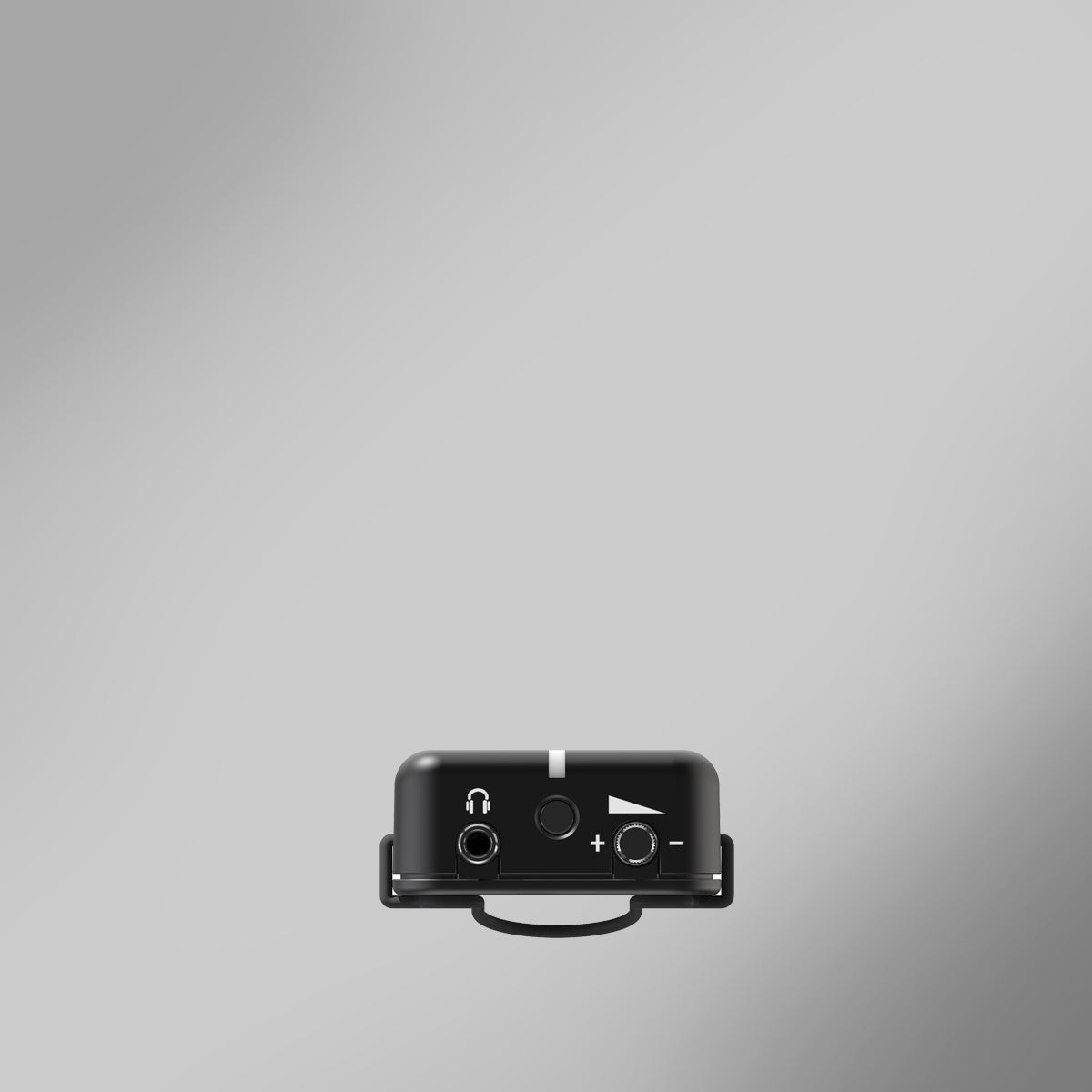

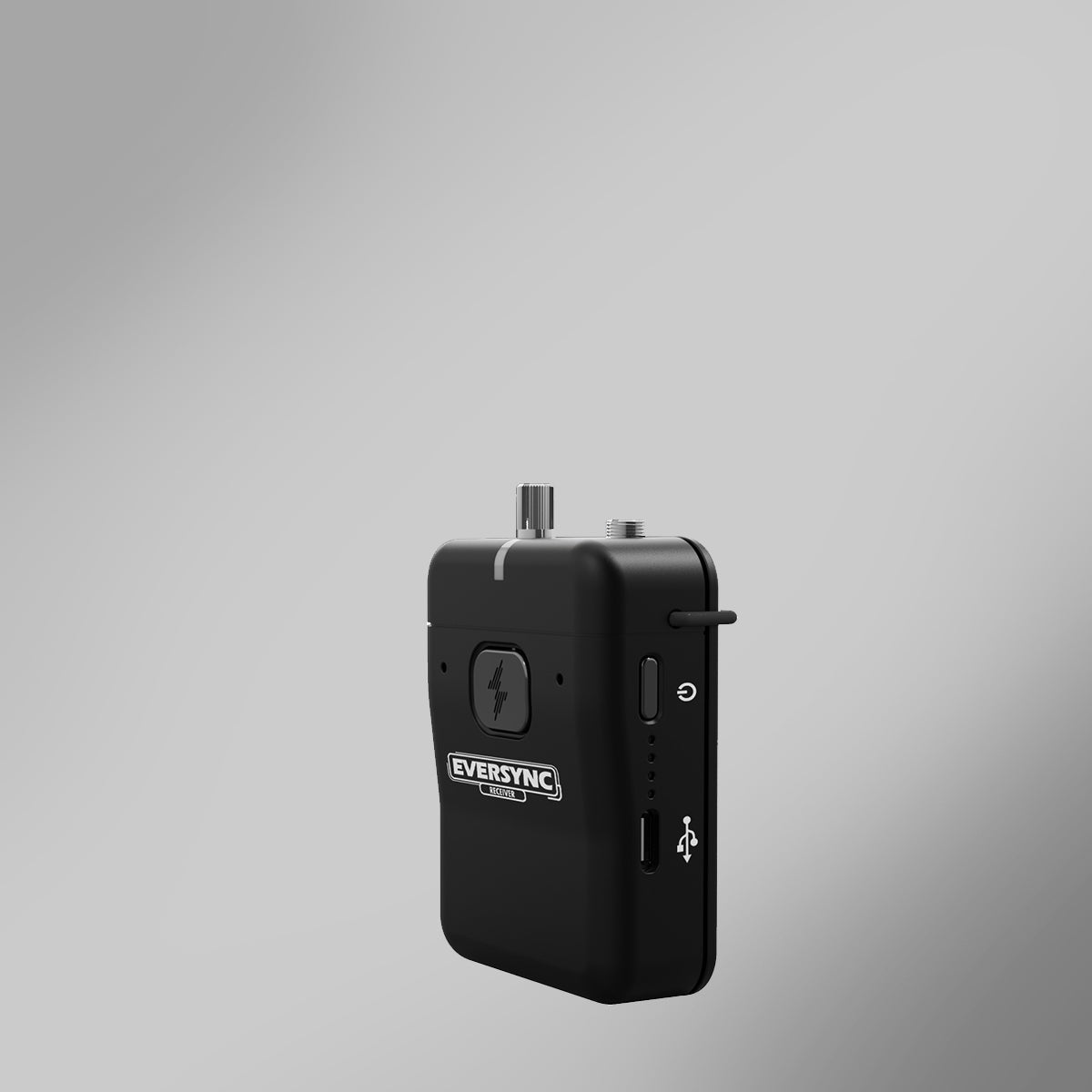

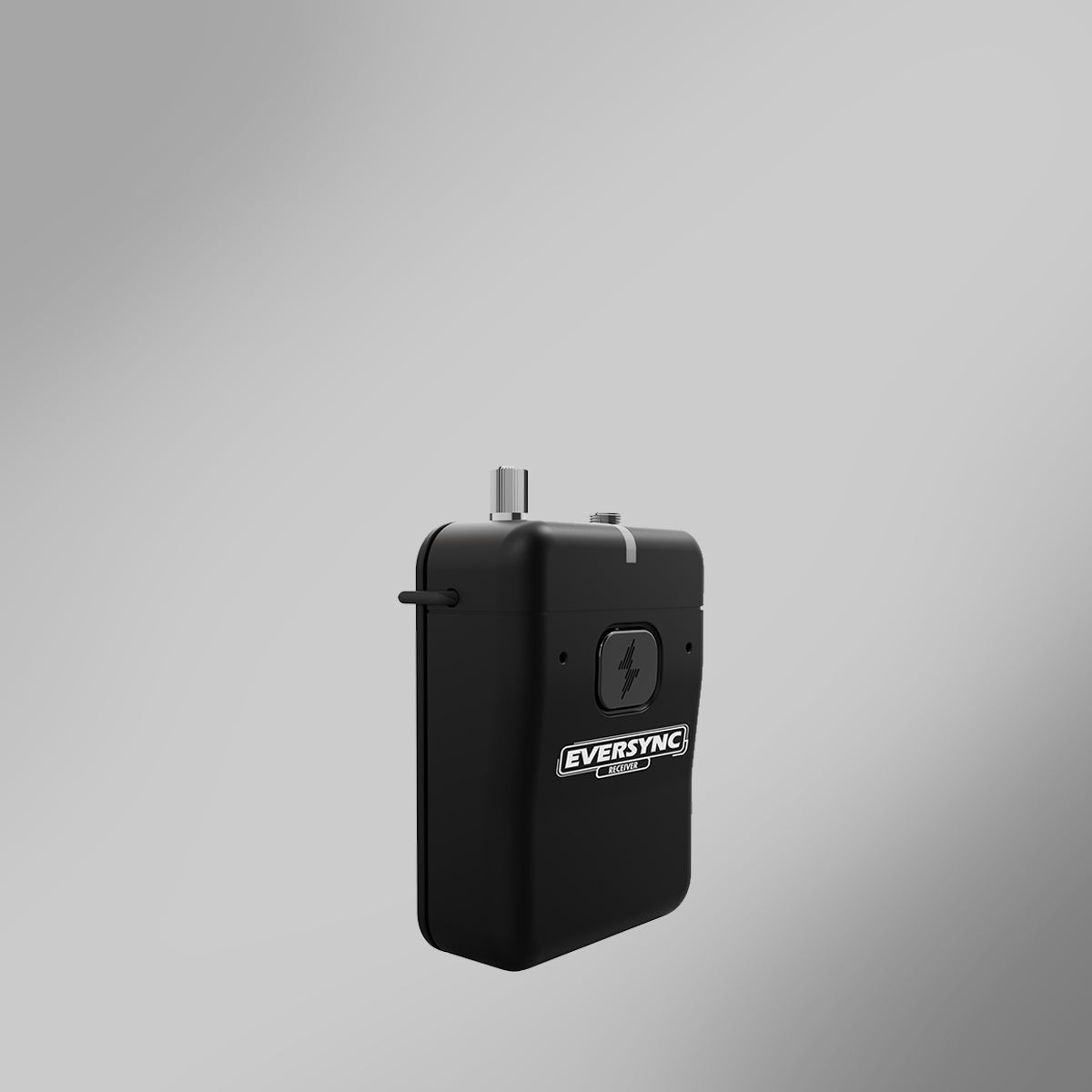

①POWER BUTTON
②BATTERY INDICATOR
③USB-C CHARGING/DATA PORT
④AUX-IN INPUT--1/8" TRS
⑤HEADPHONE CONNECTOR
⑥PAIRING BUTTON
⑦HEADPHONE VOLUME
⑧STATUS INDICATOR
⑨VOLUME LIMITER

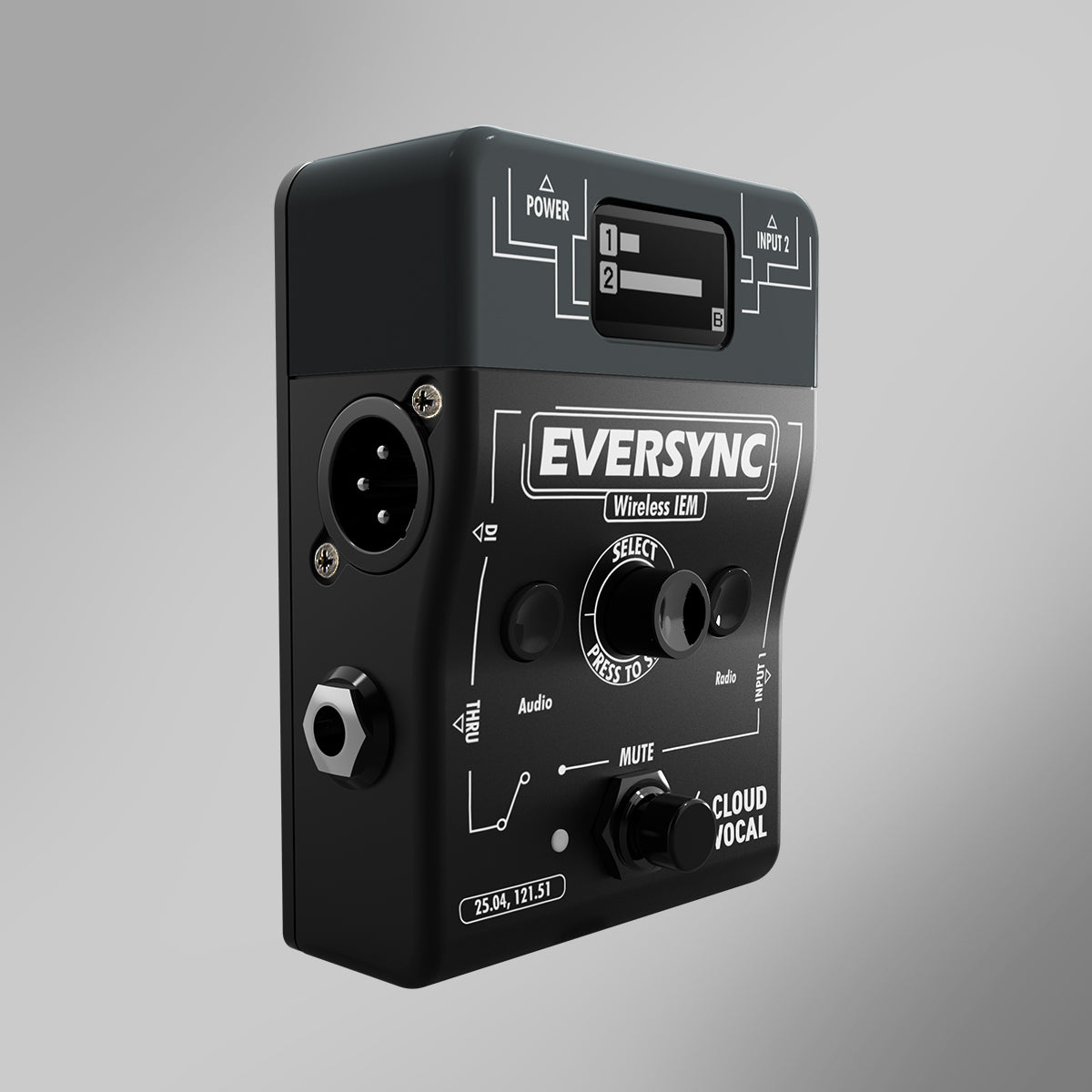

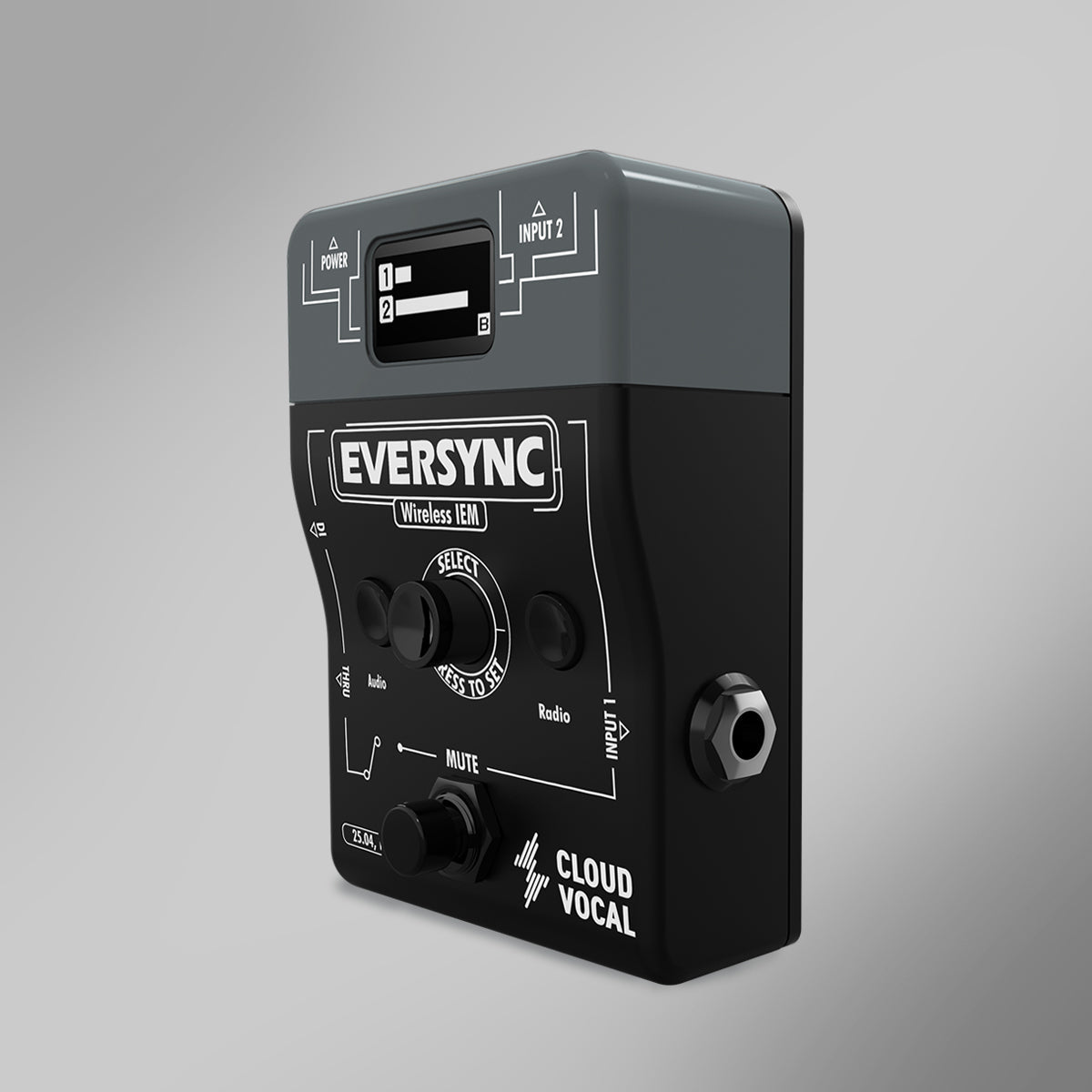

①OLED SCREEN
②RADIO FUNCTION KEY
③MAIN FUNCTION KEY
④AUDIO FUNCTION KEY
⑤MUTE SWITCH
⑥MUTE/PAIRING INDICATOR
⑦INPUT 1--1/4" TS
⑧INPUT 2--1/4" TS
⑨INPUT 2--1/8" TRS

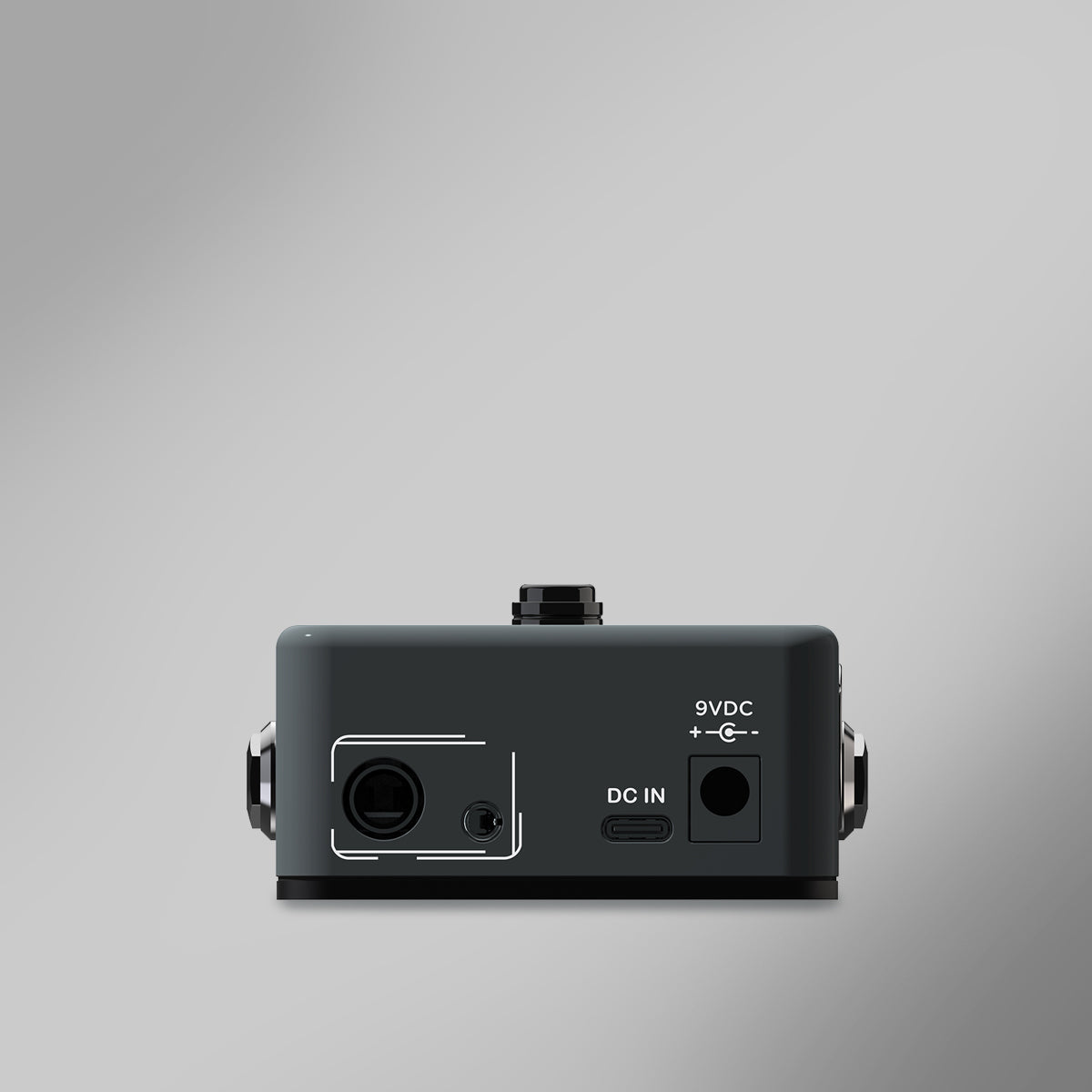

⑩USB-C POWER SOCKET
⑪DC POWER SOCKET
⑫DI OUTPUT--XLR
⑬THRU OUTPUT--1/4" TS

① RANGE BOOST

② DI / LINE OUT
DI OUT : balanced signal via 6.3mm TRS to XLR cableLINE OUT: unbalanced signal via 6.3mm TS cable

⑤ MUTE PEDAL CONNECTOR

③ LINE/MIC GAIN
Gain range: 0~40dB

④ LINE/MIC INPUT
Support MIC level to LINE level signal input via 6.3mm TS or TRS cable.

⑤ MUTE PEDAL CONNECTOR

⑥ AUX IN
